Digital Tools Power Knowledge Creation

Knowvention is highly skilled at developing Virtual or Digital Prototyping tools to drive innovation. Like they say, knowledge is power. Well, that really is only partially true; we like to say knowledge used properly is power. Knowledge unused ceases to be powerful.

While our Virtual Product Development process relies on computer models and analytical techniques, it is the interpretation and mining of results that provide the information necessary to make decisions. Through experience across multiple industries and disciplines, while working in cross-functional teams, Knowvention provides both breadth and depth in understanding customers' challenges from multiple perspectives.

Throughout our Virtual Product Development Process, we seek to help customers manage multiple constraints, from marketing to production, to arrive at the optimum solution for all project stakeholders. With this technique, companies will save time, money, and manpower while reaching superior quality solutions.

Please watch Knowvention's Virtual Product Development Process introduction video. It outlines the process we use to help find answers to complex and difficult problems often faced during product development projects.

Drop Impact Testing

Drop and Impact Test Simulation

Virtual product development is essential in saving time and money when products consist of complex and expensive components, such as large-scale molded components or many components like car bodies. Impact and Crash dynamic simulations allow real-world loading conditions to be used to drive design changes. Details can be fine-tuned and optimized for performance, product reliability, and robustness. Virtual Product Development tools reduce tooling costs by eliminating costly physical iterations and design changes.

Packaging Development

Packaging Development - Dynamic Drop Test Simulation

Virtual product development techniques such as finite element analysis are powerful tools for the simulation of packaging designs. We utilize these techniques across multiple industries, including medical and consumer, to help them develop solutions to tough challenges. We develop models that simulate packaging from production issues to performance issues, including the effects on the contents. Many conditions can be easily studied through the simulations, saving time and money while helping to develop innovative, efficient, and value-driven designs.

Application Areas Include:

Package Development
Package Performance
Process Simulation

To illustrate some capabilities of packaging simulations, we outline two applications involving packages and their contents undergoing drop testing. The first model demonstrates a medical device inside a sealed blister package. The device is held within snap-fit retaining tabs.

With the simple drop test, multiple issues can be investigated, including:

Retention Design's Ability to Hold the Device in Place
Will the Tyvekk Material Remain Intact if the Device Impacts It?
Will the Tyvek Peel Away From the Blister and Cause a Sterility Issue?
Cracking of the Blister Material Due to Impact.
What Are the Forces on the Device and Its Components?
- Will Components Break or Bend Permanently?
- Will the Device Actuate or Activate?
Optimization of the Packaging
- Materials
- Thickness Variations
- Processing Variables
- Environmental Factors
- Energy Absorption Efficiency
- Cost Optimization

In the first movie, we can see the effects of the impact on the package and the device. The device is released from the snap retainers and is free to impact the cover.

In the second movie, we can see the stress points created by the impact of the device on the cover. Both the handle and tip of the medical device make contact with the cover, which may lead to a puncture and breach of sterility

The third view shows the impact of the device from inside the blister. Careful examination shows that the tip of the device contacts twice during the impact.

This simulation involves the cohesive failure of an adhesive used to bond a TYVEK sheet to a strip of PETG material. The model simulates a peel test configuration that can be correlated to testing for the development of the adhesive's cohesive material properties. Many configurations can be simulated to properly model the testing and provide a validated model for use in other simulations, such as drop testing of a package.

This simulation is a 3-foot drop test with cohesive failure of an adhesive used to bond a TYVEK sheet to a PETG package. Seal failure is evident upon impact, highlighted by the arrow in the movie below.

In the second example of a packaging development model, we have an example of a fragile product in a protective canister. In this model, we have snack chips that are prone to breaking. To study the effects of dropping a canister of chips, we modeled the chip material to include failure criteria. In this way, any damage to the product can be directly studied. The container is a cardboard product with a plastic lid.

In the first movie, we see the entire container and its contents impacting the ground. The cardboard canister flexes significantly, and the product is shaken violently and thrown upward towards the opening where the lid has come off the canister.

The second movie demonstrates the stresses in the chips as they are thrown about the container. We can see the stress wave as it passes through the chip stack.

A close-up view of the chips during the impact is shown in the third movie. Damage can be seen on the tips of the chips that impact the canister wall. Data like this can be used to optimize the energy absorption characteristics of packaging to avoid damage to its contents.

Nonlinear Material Modeling

Nonlinear Material Modeling - Nitinol - Nickel-Titanium Alloy

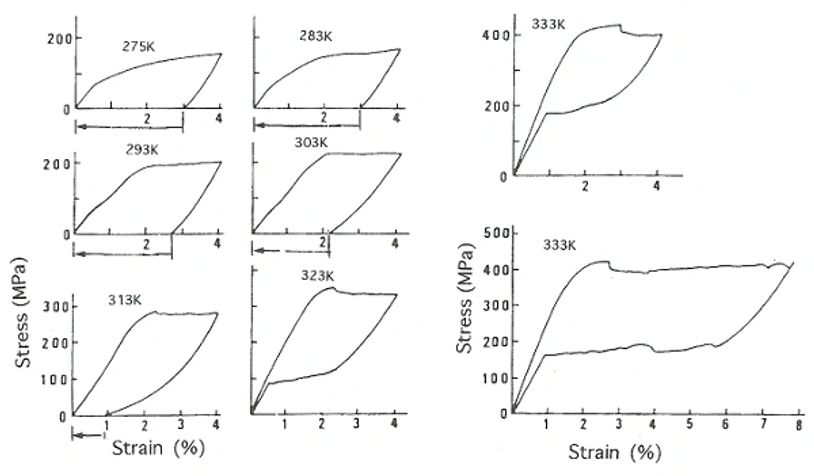

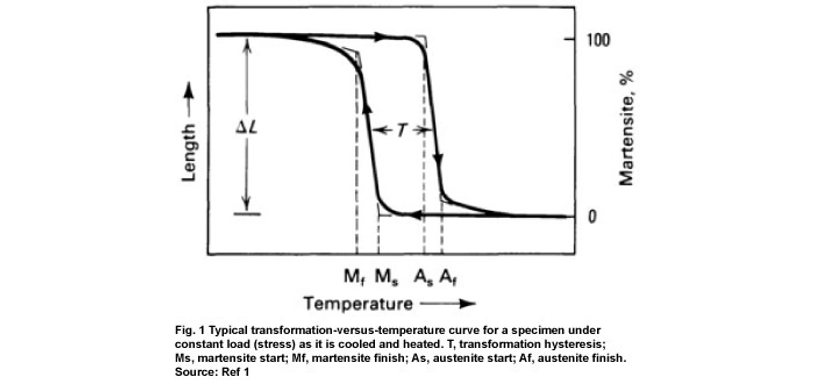

One special example of nonlinear material modeling involves what is known as Superelastic or shape memory materials. Several materials exhibit these characteristics, including multiple metal alloys as well as some plastics. In the super elastic condition, the metal behaves very much like a rubber while in the Shape Memory mode, the application of heat will cause the material to go back to its original condition. Nitinol can be tailored to behave in various ways in heat treatment and mechanical work. Control of mechanical properties is through the manipulation of transformation properties: Ms, Mf, As, Af. Ms and Mf are the Martensite start and finish temperatures, while As and Af are the Austenite start and finish temperatures. A typical transformation-versus-temperature curve is shown in Fig. 1 below. (Ref ASM)

The finite element analysis (FEA) simulation shown in the movie demonstrates a device made of Nitinol (Nickel-Titanium alloy) modeled in the super elastic condition. Severe twisting of the component is required to insert it. Upon release, the component holds its position without plastic deformation. Many complex behaviors can be developed through the use of advanced materials such as Nitinol.

Fluid-Structure Interaction - FSI

Solid & Fluid and Two Separate Fluids & Solids

Virtual Product Development can use multi-physics simulations such as Fluid-Structure Interaction - FSI - including multi-fluid systems. Here we present two examples of FSI. In the first model, a high-velocity projectile is fired at a stationary target, while the second simulation involves two separate fluids along with their interaction with flexible and rigid structures. Fluid-structure interaction (FSI) multiphysics problems can capture very complex interactions and provide multi-level data for both the structures and the fluids.

The modeling technique used in these Fluid-Structure Interaction (FSI) simulations is the Arbitrary Lagrangian-Eulerian (ALE) method. The ALE method consists of a Lagrangian (structural) step followed by a remap, or advection, Eulerian (fluid) step. In this way, the simulation sequentially accounts for the interaction of a structure with a fluid.

In the first ALE simulation shown here, the projectile (structural component) has elastic-plastic material behavior, allowing for large plastic deformations in the projectile as it impacts the target. The target is a block of liquid water modeled with an Equation of State (EOS). The second simulation involves twoness, one for each fluid. The structural components consist of a non-linear elastic “funnel” as well as a rigid plate. Contact is maintained in each of the models across all the components.

The results of the high-velocity impact simulation show fragmentation of the target along with severe plastic deformation of the projectile. This model is relatively simple; however, it demonstrates the power and ability of the ALE Fluid-Structure Interaction simulation method to capture complex behavior.

In another example, the fluid interaction is demonstrated along with the fluid structure interaction (FSI). The result shown in the animation of the second model indicates there is very little to no mixing occurring between the fluids despite the interactions with the structural components.

Discrete Element Method

Bulk Material Flow in a Paddle Mixer

The Discrete Element Method - DEM - is a numerical method for simulation of the motion of many particles. These particles can vary in size from micron scale to large scale, such as rocks or other bulk materials. The technique takes into account forces due to friction, contact (including plasticity and rebound effects), gravity, cohesion, adhesion, electrostatics, and at the atomic level van der Waals forces and Pauli repulsion forces.

The DEM techniques allow a wide range of applications to be studied in many industries, including:

Food Processing
Mining & Mineral Processing
Agriculture Machinery
Construction Equipment
Pharmaceutical Manufacturing
Oil and Gas
Civil Engineering
Other Industries Dealing With Particulate Flow Design Issues

One example of a bulk material flow problem is shown below, where a defined amount of product is introduced into a paddle mixer. As the material pours in, the paddles begin to mix and propel the product along the chute. Areas where the product is not mixing are evident as well, showing that this particular configuration may not produce the desired mixing and flow characteristics.

Bottle Cap Closure Process

Threaded Closure Process With Force Output Graphs

Here we see a dynamic simulation of an assembly process involving the capping of a bottle. Of primary interest is the torque and thrust loading developed on the system as the cap is spun onto the bottle.

The components of this simulation include the capper equipment head, the bottle cap with female threads, and the bottleneck with tale threads. The model is fully three-dimensional, including a free-floating cap that is constrained by contact with the capper head and bottleneck. The bottleneck is fixed at its base, and the capper head is controlled to move axially and rotate to effect the closure.

The capper head is modeled with a hyperelastic rubber material, while the bottle components are elastic-plastic materials. The bottle cap and bottleneck are modeled with elastic-plastic materials. This allows for any localized plasticity in the threads. The friction of the cap-to-head and cap-to-neck is controlled separately to reflect the rubber-to-plastic and plastic-on-plastic interactions. The inclusion of friction and plasticity allows the sources of work to be properly differentiated, and the efficiency of the system can be reviewed.

A plot of the torque (red curve) and axial force (blue curve) shows their time variation as the cap is assembled onto the bottleneck. This video shows the stress distribution in the components, with the capper head and bottle cap sectioned for visibility. Other results are available, such as the contact pressure between the bottle cap and neck, as well as any permanent plastic strain that occurs.

Mechanism Assembly Dynamic Function

Complex Contact Modeling: Multi-Body Assembly Dynamic Model

Often, simulation techniques are used on single components under simplified conditions. These simplifications can lead to uncertainty in the results for a component, entire system, or device. Complex interactions that occur in the full assembly condition and actual operation are not accounted for.

In the example shown here, a toggle clamp mechanism is simulated in a fully assembled condition, including the workpiece to be clamped. The toggle mechanism components are controlled exclusively by contact with friction. The only boundary conditions involved the fixture of the base of the workpiece and clamp base boltholes. All components are modeled with elastic-plastic material properties. This ensures that any local plastic deformations that could occur would be captured, as this will drastically affect the efficiency of the mechanism.

The simulation also takes advantage of the capability to control interactions between components. Components are selectively removed from contact (or other interactions) and then reintroduced as shown by the clamp mechanism passing through the workpiece at the start of the simulation. Then, upon closure, it contacts and clamps the workpiece.

This technique provides a wide range of capabilities in the simulation of products and processes that involve complex interactions, such as assembly steps, or multiple functions. Results include the full assembly functional behavior as well as that of each component. Weak areas can be detected, and a focused effort can be placed only where it is needed. This saves cost, time, and effort in a project.

Radio Frequency Thermal-Electric Tissue Ablation

Tumor Ablation System Modeling: Tissue and Virtual Generator

This example demonstrates the complex behavior of Radio Frequency - RF - Thermal-Electric Tissue Ablation. The model consists of a cylindrical segment of the liver, shown here with slices removed for visualization purposes. There are three sets of double-pronged electrodes arranged in a hexagonal pattern around the target tissue, which could be a tumor or other lesion.

The electrode array is driven by a virtual generator modeled with a user subroutine providing the full feedback loop where the generator responds to the changing tissue impedance as the tissue is ablated. Multiple digital generators were developed, allowing the entire generator to be changed as desired to investigate the function of the device designs under multiple service conditions.

A wide range of variables can be studied as to their effects on the lesion, including:

Power On-Time
Power Off-Time
Electrode Pair Sequence
Generator Power Level
Generator Design
- Current Product
- Competitor's Product
- New Concepts
Electrode Geometric Configuration

The liver tissue material model for the simulation included thermal and electrical properties that varied as a function of temperature.
